HL3 Series
Home > Product Lines > Tube Heaters > Tube Heater Parts > HL3 Series
HL-3 Series Parts References
Exploded Burner Box View
Exploded Tube And Reflector View

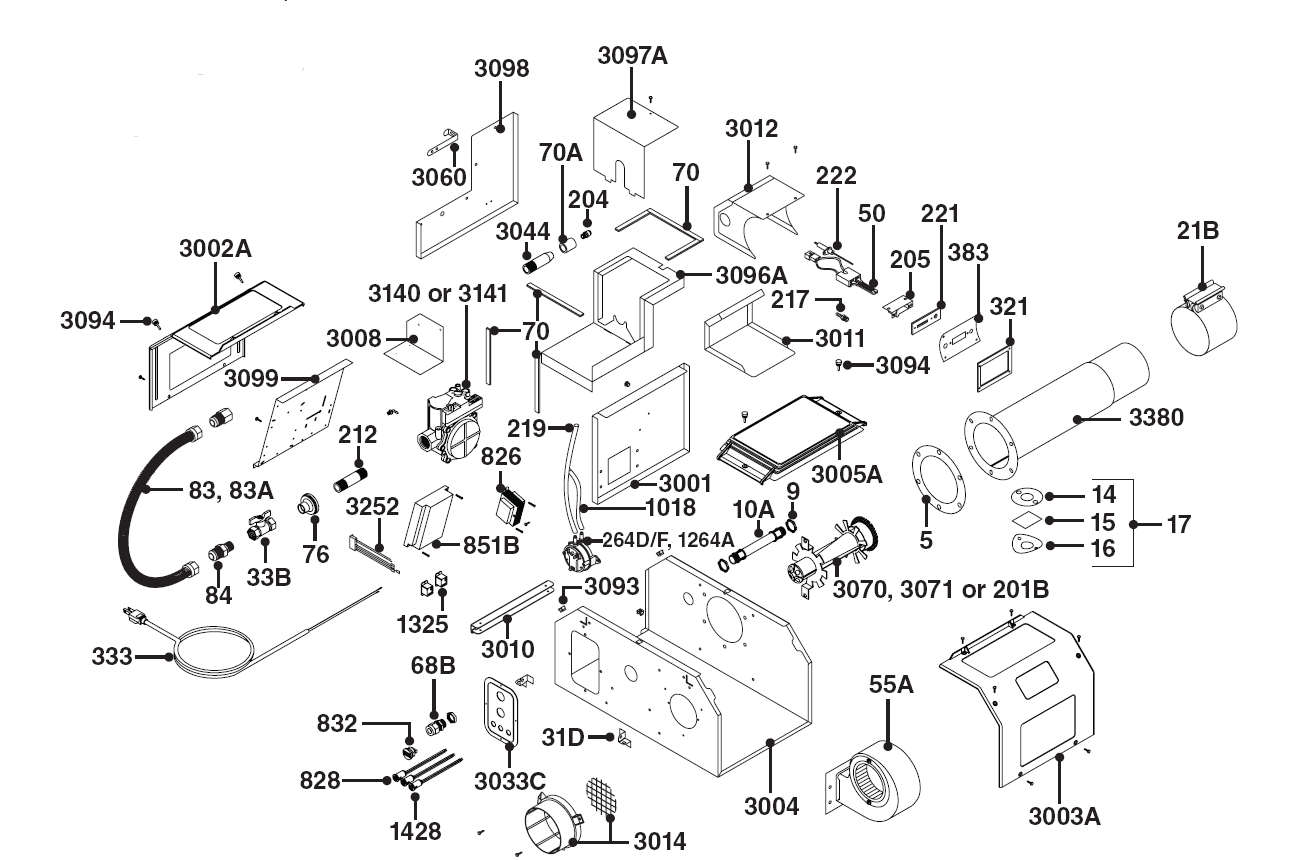

HL-3 Series Exploded Burner Box View
Items
TP-5 - Detroit Radiant Products
Flange Gasket
 TP-10A - Re-Verber-Ray - Detroit Radiant Products
Conduit 4'' x 3/4''
TP-14 - Detroit Radiant Products
Sight Glass Gasket
TP-15 - Detroit Radiant Products
Sight Glass
TP-16 - Detroit Radiant Products
Sight Glass Washer
TP-17 - Detroit Radiant Products
Sight Glass Kit
 TP-31D - Re-Verber-Ray - Detroit Radiant Products
Interlocking Mounting Bracket ''L'' (Qty 2)
TP-33B - Detroit Radiant Products
1/2 Inch Gas Cock
TP-50 - Detroit Radiant Products
Glo-Bar Ignitor
TP-55A - Detroit Radiant Products
Fasco Fan Blower
 TP-68B - Re-Verber-Ray - Detroit Radiant Products
Large Strain Relief Bushing
 TP-70 - Detroit Radiant Products
Control Box Cover Gasket
 TP-70A - Re-Verber-Ray - Detroit Radiant Products
1'' Wide Manifold Gasket - 6''
 TP-76 - Detroit Radiant Products
Rubber Grommet
TP-83 - Detroit Radiant Products
Stainless Steel Flex Connector
TP-83A - Detroit Radiant Products
Stainless Steel Flex Connector - PVC Coated
 TP-84 - Detroit Radiant Products
1/2'' Female / Male FC-24 Fitting
 TP-201B - Re-Verber-Ray - Detroit Radiant Products
Mid BTU DRP Burner - Small Bluff
TP-204 - Detroit Radiant Products
Tube Style Gas Orifice
TP-205 - Detroit Radiant Products
Glo-Bar Holder
 TP-212 - Detroit Radiant Products
1/2'' x 3'' Pipe Nipple
 TP-217 - Detroit Radiant Products
1/4'' x 1/8'' Brass Barb Fitting For 16'' x 4'' Tube
 TP-219 - Re-Verber-Ray - Detroit Radiant Products
Differential Vinyl Sensing Tube (burner)
TP-221 - Detroit Radiant Products
Glo-Bar Holder Gasket
TP-222 - Detroit Radiant Products
Flame Rod
TP-245 - Detroit Radiant Products
1/4'' x 1/8'' Plastic Gas Valve 90 Degree Vent
TP-264D - Detroit Radiant Products
Burner Pressure Switch
65-75 MBH
TP-264E - Detroit Radiant Products
Burner Pressure Switch
125 to 200 MBH
 TP-321 - Re-Verber-Ray - Detroit Radiant Products
Ignition Plate Gasket
 TP-333 - Re-Verber-Ray - Detroit Radiant Products
72'' Black 120V Power Cord
TP-826 - Detroit Radiant Products
40VA Transformer
TP-828 - Detroit Radiant Products
Yellow 24V Indicator Light
 TP-832 - Detroit Radiant Products
Thermostat Terminal Strip
 TP-840A - Re-Verber-Ray - Detroit Radiant Products
36G54-224 Gas Valve - Natural Gas Assembly
 TP-841A - Re-Verber-Ray - Detroit Radiant Products
36G54-226 Gas Valve - LP Gas Assembly
 TP-851B - Re-Verber-Ray - Detroit Radiant Products
35-66 Diagnostic Circuit Board
 TP-1018 - Re-Verber-Ray - Detroit Radiant Products
Differential Switch Vinyl Sensing Tube (exhaust)
TP-1264A - Detroit Radiant Products
Burner Pressure Switch
TP-1325 - Detroit Radiant Products
24V Switching Relay Board
 TP-1428 - Re-Verber-Ray - Detroit Radiant Products
24V Green Operational Indicator Light
 TP-3002A - Re-Verber-Ray - Detroit Radiant Products
Control Compartment End Panel - Plastic
 TP-3003A - Re-Verber-Ray - Detroit Radiant Products
Fan Compartment End Panel - Plastic
 TP-3004 - Re-Verber-Ray - Detroit Radiant Products
Main Control Box Chassis
 TP-3005A - Re-Verber-Ray - Detroit Radiant Products
Valve Compartment Top Lid - Plastic
 TP-3008 - Re-Verber-Ray - Detroit Radiant Products
Gas Valve Mounting Bracket
 TP-3010 - Re-Verber-Ray - Detroit Radiant Products
Service Panel Hinge
 TP-3011 - Re-Verber-Ray - Detroit Radiant Products
Spark Ignitor Box
 TP-3044 - Re-Verber-Ray - Detroit Radiant Products
Gas Manifold
 TP-3012 - Re-Verber-Ray - Detroit Radiant Products
Spark Ignitor Box Cover
 TP-3014 - Re-Verber-Ray - Detroit Radiant Products
Plastic Air Inlet Collar (Black)
 TP-3033C - Re-Verber-Ray - Detroit Radiant Products
Power Entry Plate - ''C''
 TP-3060 - Re-Verber-Ray - Detroit Radiant Products
Pressure Switch Mounting Bracket
 TP-3001 - Re-Verber-Ray - Detroit Radiant Products
Burner Control Box Center Panel

 TP-3070 - Re-Verber-Ray - Detroit Radiant Products
V3 SS Low BTU Burner
 TP-3071 - Re-Verber-Ray - Detroit Radiant Products
V3 SS High BTU Burner
 TP-3096 - Re-Verber-Ray - Detroit Radiant Products
Valve Compartment Bottom Panel
 TP-3097 - Re-Verber-Ray - Detroit Radiant Products
Valve Compartment Top Panel
 TP-3098 - Re-Verber-Ray - Detroit Radiant Products
Valve Compartment Side Panel
 TP-3099 - Re-Verber-Ray - Detroit Radiant Products
Controls Mounting Panel
 TP-3252 - Re-Verber-Ray - Detroit Radiant Products
3 Piece Wiring Harness Set
